Product features

1, Standard aluminum profile in 6063- T5, PA66 nylon sealing strip;

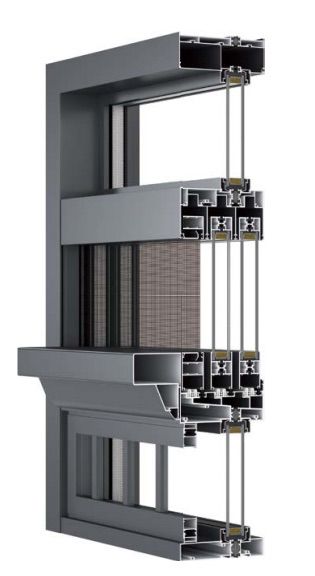

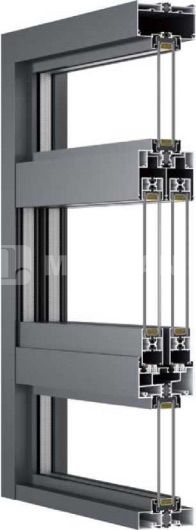

2, The structure between frame, fans and rails make good vision of the window with better sealing performance;

3, The design of the upper rail and guard fame improves the force resistance;

4, Down rail with floor drain system in high & low rail design, makes quick drainage to prevent backflow;

 5, 45° of the angle combination is more flatter and tighter. It makes production more effective and universality;

6, 0.5mm mosquito net is sturdy, well ventilated and lighting.

7. Internal side can be installed handrails and drying racks.

Thickness Frame 1.4mm/ Fan 1.8mm

Size Glass fan 33mm/ Sash 33mm

Glass 5+24A+5 hollow glass

Hardware Imported hardware brand

Opening mode Sliding
